The clips stand a significant role in any installation of composite cladding, and should be understood before starting any installation to avoid mistakes.

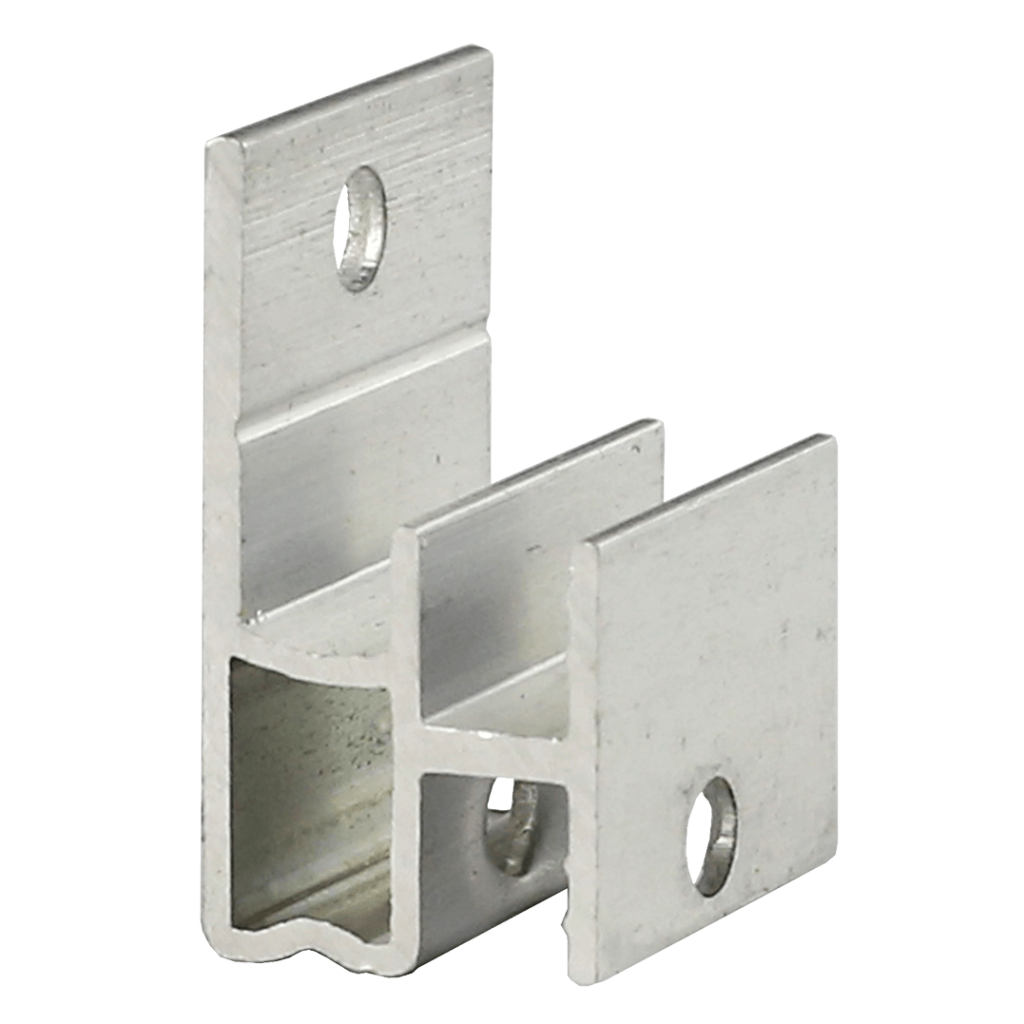

All Weather System
Material: Aluminum
Size: 20 x 15 x 28mm (0.78 x 0.59 x 1.10in)
Material: Aluminum
Size: 20 x 15 x 28mm (0.78 x 0.59 x 1.10in)
Material: Rubber
Size: 18 x 8mm (0.70 x 0.31in)
Installed on the joists to support the
US09 when installing the last board.
Material: Aluminum
Size: 15 x 14.5mm (0.59 x 0.57in)
Installed on the joists to support the
US09 when installing the last board.
Screen & Partition
Material: #201 Steel
K-33 is used as a connecting mechanism between the joist and the decorative profile
K-33 has an oval hole designed for expansion and contraction The other hole is used to fix K-33 to the joist
End Cap
Material: Plastic
EC-UH17 is used at the end of UH17 as a covering for the hollow chambers
EC-UH17 should be attached with a dab of silicon to ensure a secure fit
